Viewing is accomplished as described above.

When a MultiMedia Card is inserted, OMNIScanner2 will allow you to copy

results to the portable card.

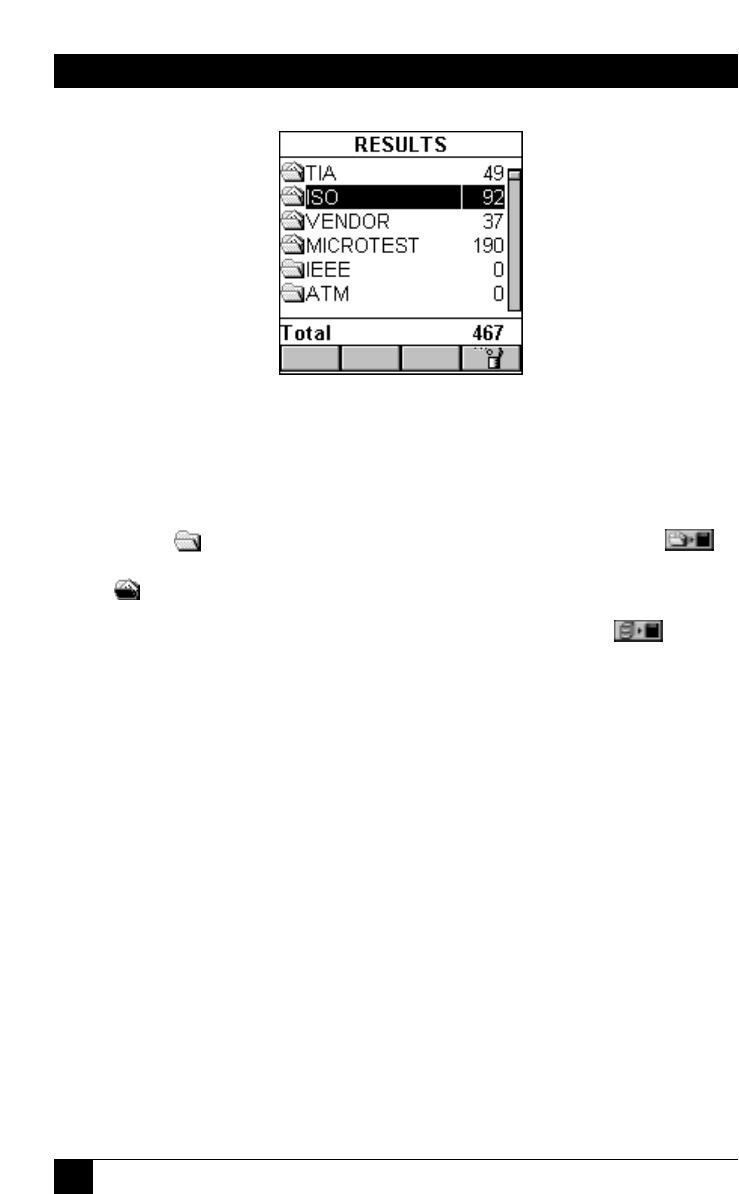

To copy the test results(s) contained in one project to the MMC, highlight the

appropriate Project folder in the RESULTS screen and then press

(Copy Project to MMC). This function is available only for Projects in the internal

flash (black Project folder).

To copy all Projects that are listed in the RESULTS screen, press (Copy

Results to MMC).
