OMNISCANNER

4. Press .

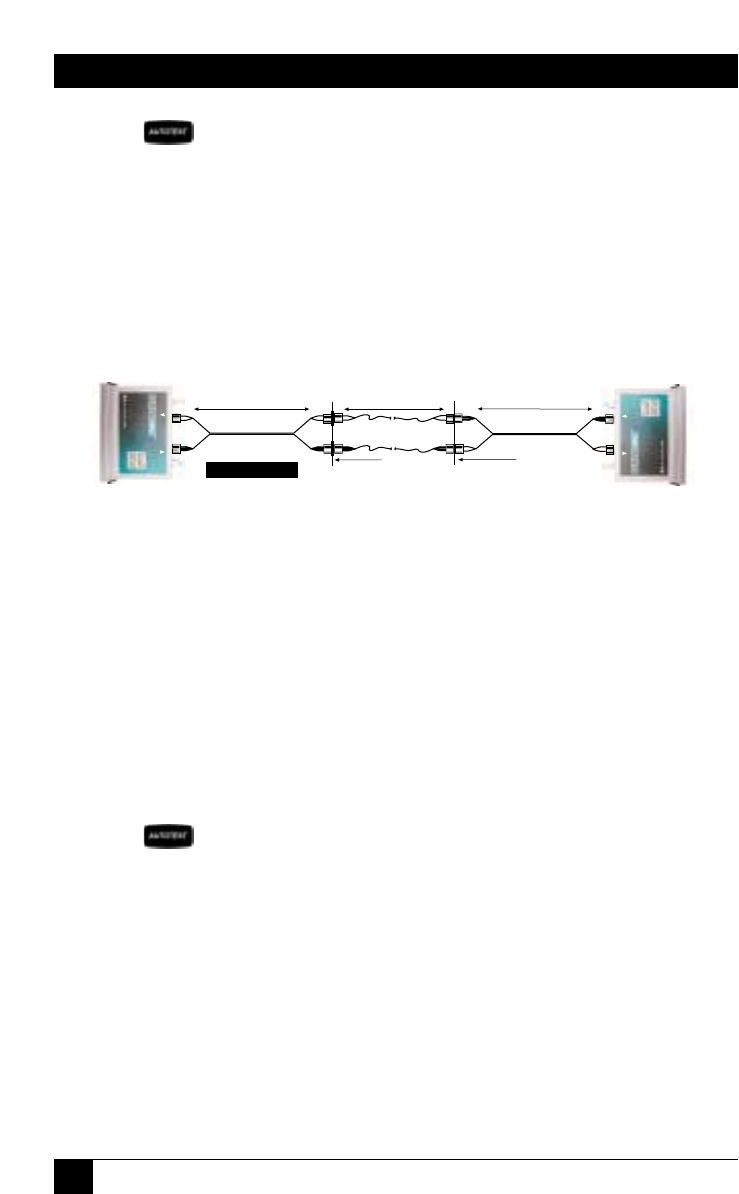

METHOD B

To run an Autotest when Method B was used to set the Reference proceed as

follows:

1. Do not disconnect the black connectors which are attached to the TX port of

the OMNIFiber Adapters.

2. Disconnect the black connectors that are attached to the RX ports of the

OMNIFiber Adapters.

3. Connect the white connectors to the RX ports on the OMNIScanner fiber

adapters.

4. Connect the OMNIFiber Main to one end of the duplex link under test and

the OMNIFiber Remote to the opposite end.

5. Press .

METHOD C

To run an Autotest when Method C was used to set the Reference, proceed as

follows:

850 nm

1300/1310 nm

850 nm

1300/1310 nm

2 m Launch Cable

Patch Panel

METHOD B

Wall Plate

Cable under Test
