OMNISCANNER

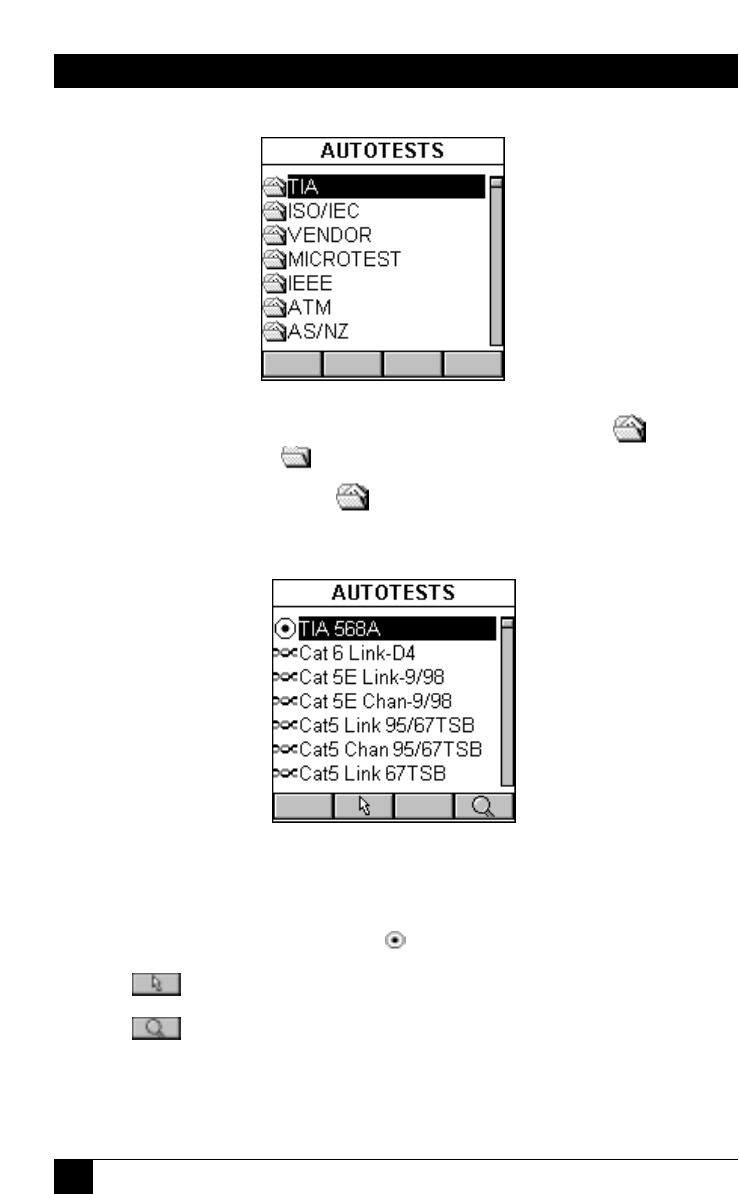

If there are Autotest specifications in a folder, it will appear full ;

otherwise it will be empty .

Highlight a folder containing items and press ENTER to display the list

of Autotests contained in that folder.

Use the up-arrow or down-arrow key to highlight a specific Autotest.

Copper tests are marked with a twisted pair icon.

Fiber optic tests are marked with a fiber icon.

Press (Set Default) to select it as the Autotest to run.

Press (Detail) to review the Autotest’s limits.
